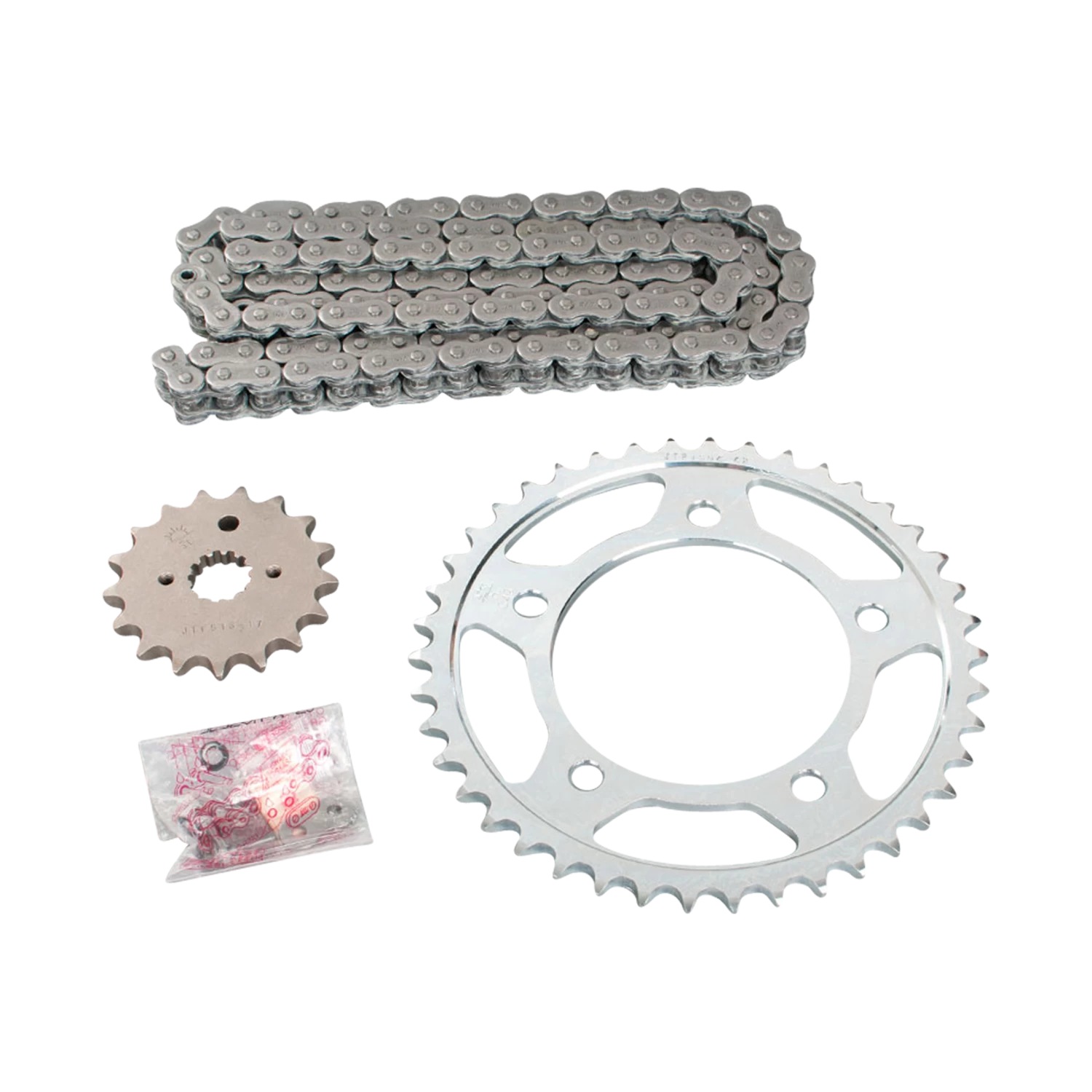

JT And D.I.D 525ZVM-X X-Ring Chain And Sprocket Kit

A flexible package where you can choose your own sprocket and chain length for yourself!
With the help from our guide you can easily see and change the standard teeth and chain for your bike.
To achieve this, Select the corresponding sprocket and chain in the list below.

This is a combination of a chain from Japanese D.I.D and sprockets from the world’s largest: JT Sprockets!

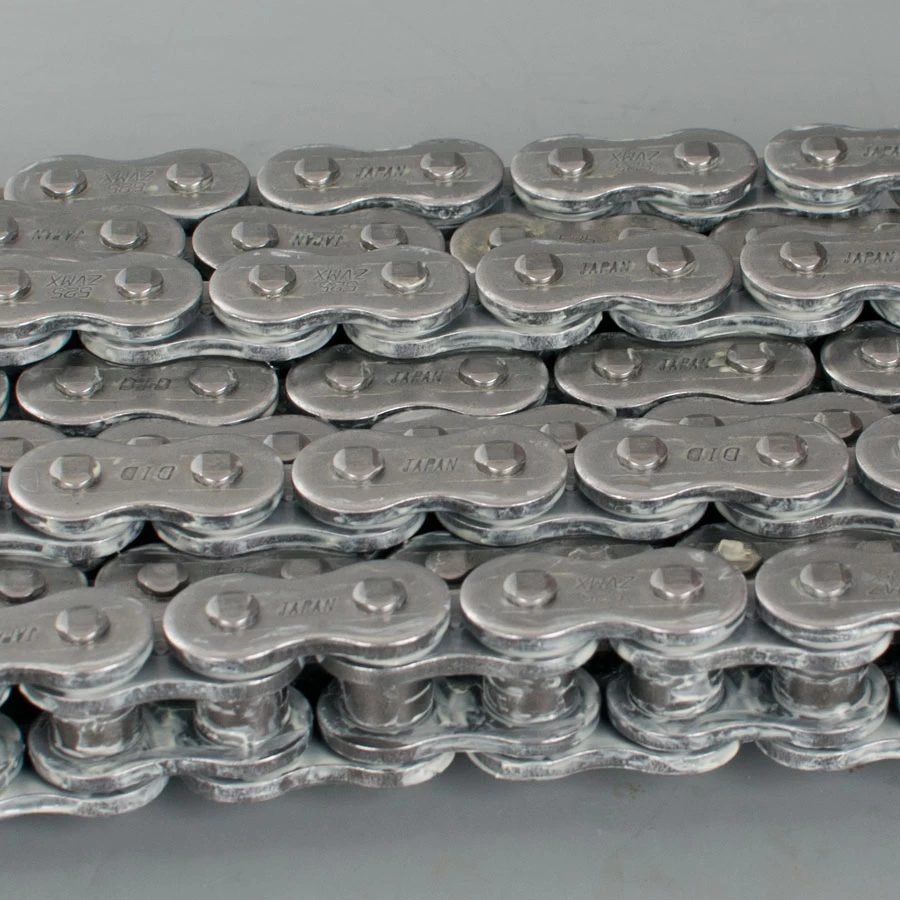

An extremely durable chain from D.I.D, this super X-ring chain covering all needs for up to 1100cc bikes.
Comes with rivet link.
The chain’s average tensile strength is: 46.3 (kN) / 10,408 (LBS)

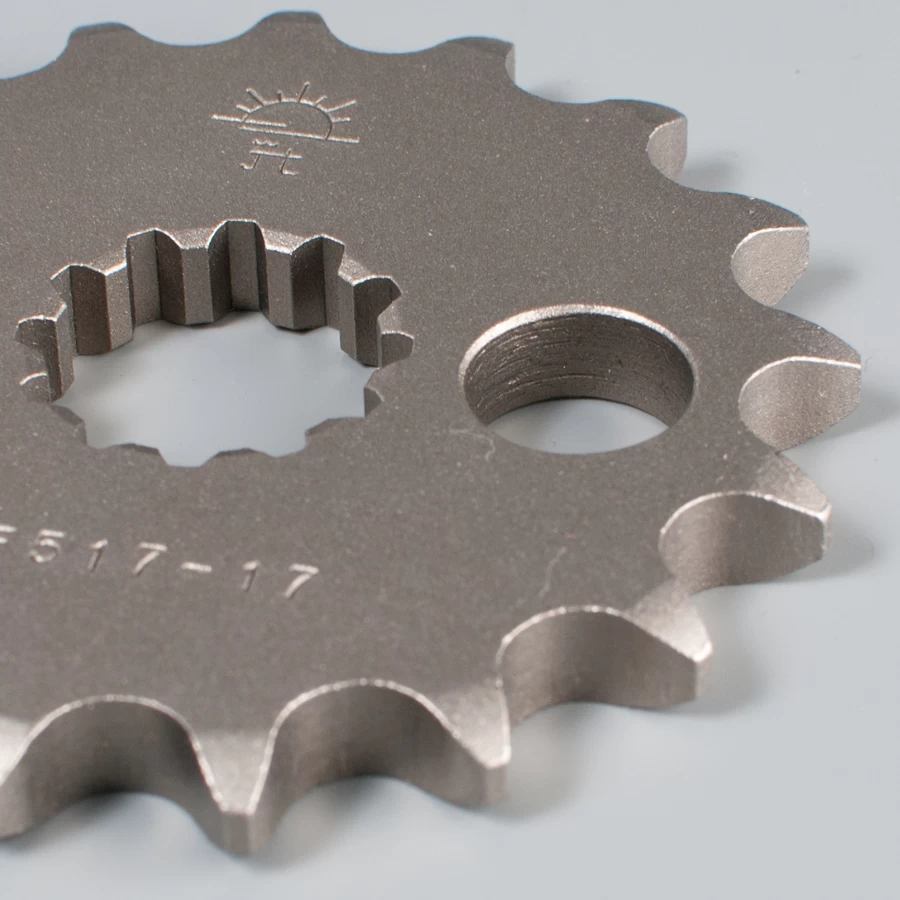

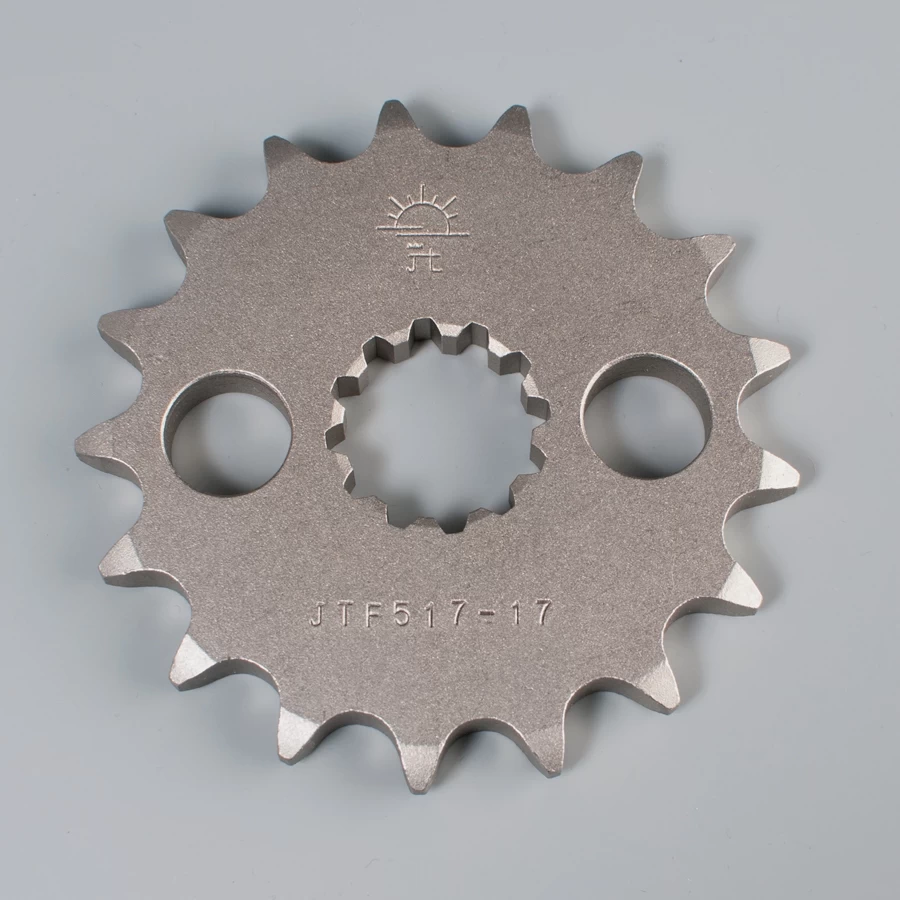

All JT’s sprockets are CNC – machined from high quality C45 steel , providing greater precision and durability.
After milling, the sprockets are coated with a hard – anodized coating that prevents corrosion and extends the life.

To select the right chain and sprocket:

Changing the size of the front sprocket or the rear sprocket is a very easy and popular way to change the nature of your motorcycle.

1: To get better acceleration – Change to a smaller front sprocket and / or a larger rear sprocket.
2: In order to get a higher top speed – Change to a larger front sprocket and / or a smaller rear sprocket.

You notice a similar difference in changing one tooth front that by replacing three teeth rear.
On most motorcycles you notice a big difference in changing one tooth front, and it’s recommended to try things in small steps.
To maintain the correct angle on the chain you should distribute the changes between the front sprocket and rear sprocket as one tooth front + 3 teeth rear.

When you change the size of the sprockets, you also need to change the length of the chain.
On almost all motorcycles you can switch to one tooth bigger or smaller front or rear sprocket, but still retain the original length of the chain.

At changes of more than one tooth you often need to change the length of the chain , then the following is a good rule to use :
If you change plus 2 teeth larger sprockets , you need one link longer in the chain .

All chains increase by 2 links at a time, so you may need to cut the chain.
There is also a chance that you can avoid having to cut, by adjusting the axle blocks at the wheel axle.
